Wall Mounted Monoblock Unit

Wall Mounted Monoblock Unit
  1. Scroll compressor(Embraco/Tecumseh/Emerson etc)
  2. ETL Certificate
  3. Expansion by Thermostatic valve
  4. High and low pressure control
  5. Automatic defrosting by hot gas
  6. System for partial evaporation of defrosting water
  7. Cable for supply, light and door micro switch (2,5 m)

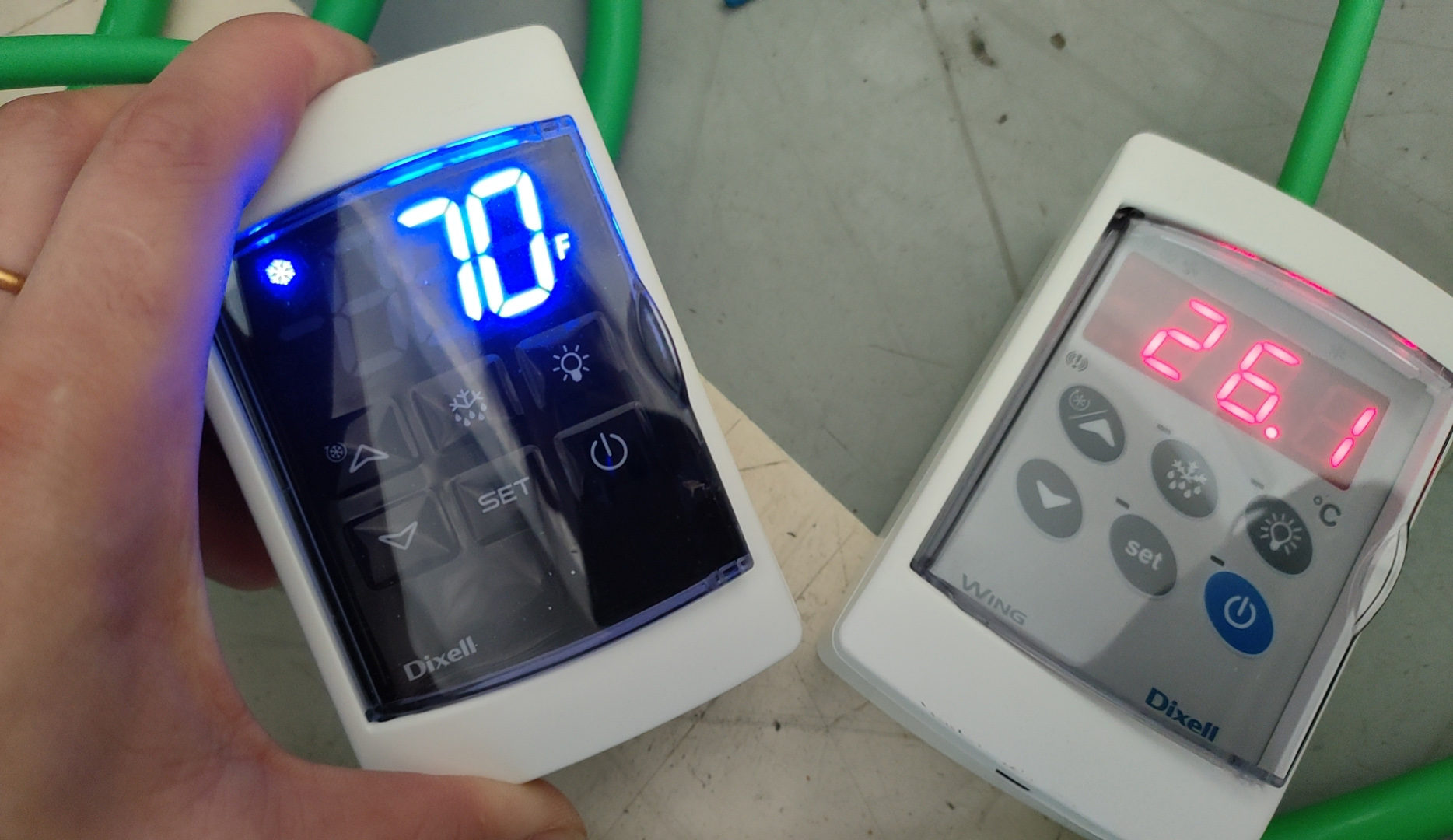

  8. Multi-function electronic control integrated in front panel
  9. Watertight light point with energy-saving LED bulb
  10. Voltage protector
  11. Condensation control by pressure switch
  12. Integrated multifunctional electronic control
  13. Ceramic filter dryer
  14. Probe alert dirty condenser
  15. Isolation panel included
  16. Install on wall panel
WHAT IS MONOBLOCK UNIT?

The compression condensing unit (external unit), evaporative air cooler (internal unit), and temperature control box have been integrated into one unit. Therefore, the internal and external units have been connected with copper pipes in the factory and completed the debugging process of pressure maintenance, vacuum pumping, refrigerant charging, and power on operation. We have achieved a complete set of original factory equipment, with a more stable system and high internal cleanliness. The all-in-one machine only needs to be embedded and installed on the cold storage body on site, and can be plugged in to operate.

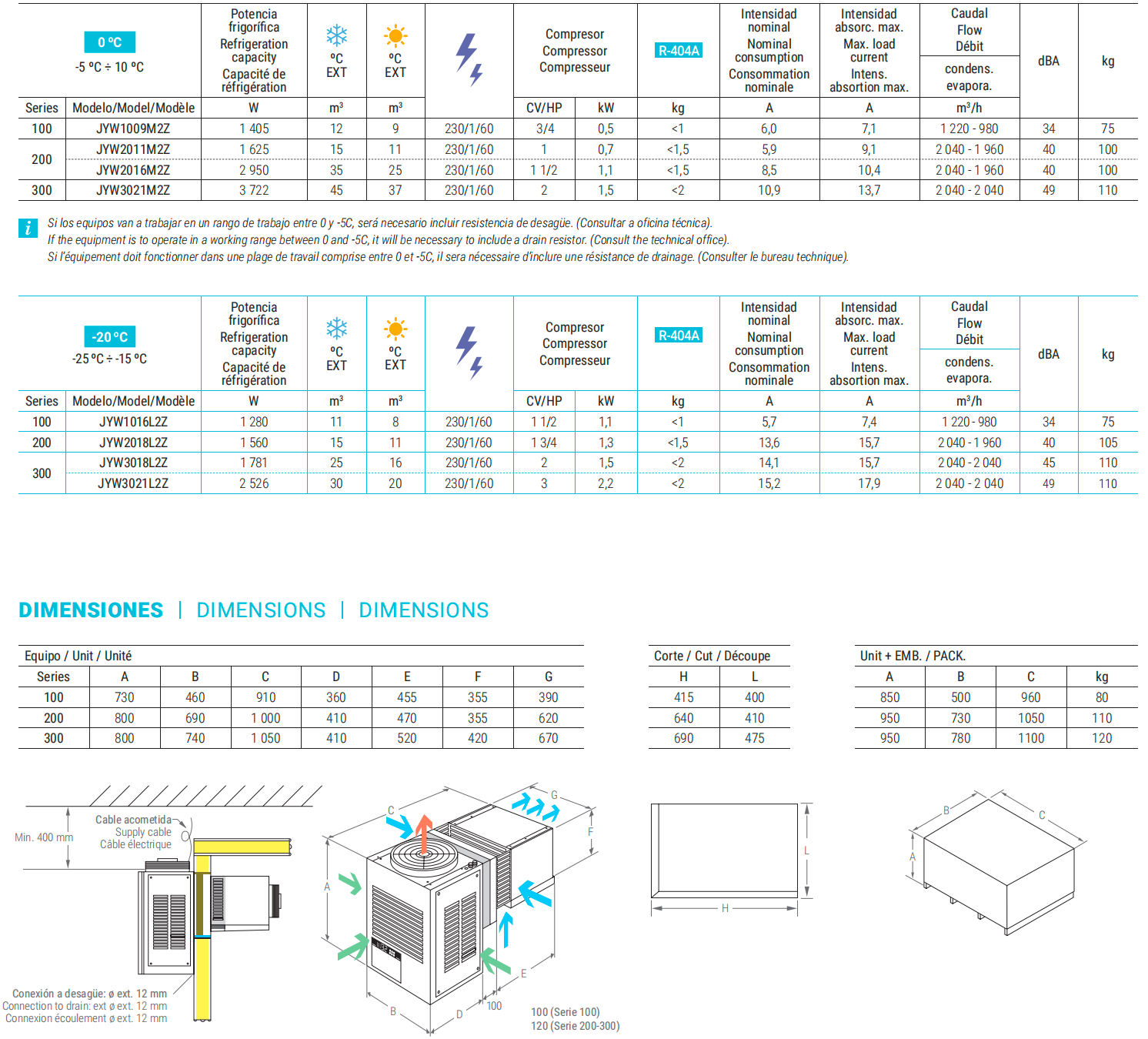

Wall Mounted Unit Parameters

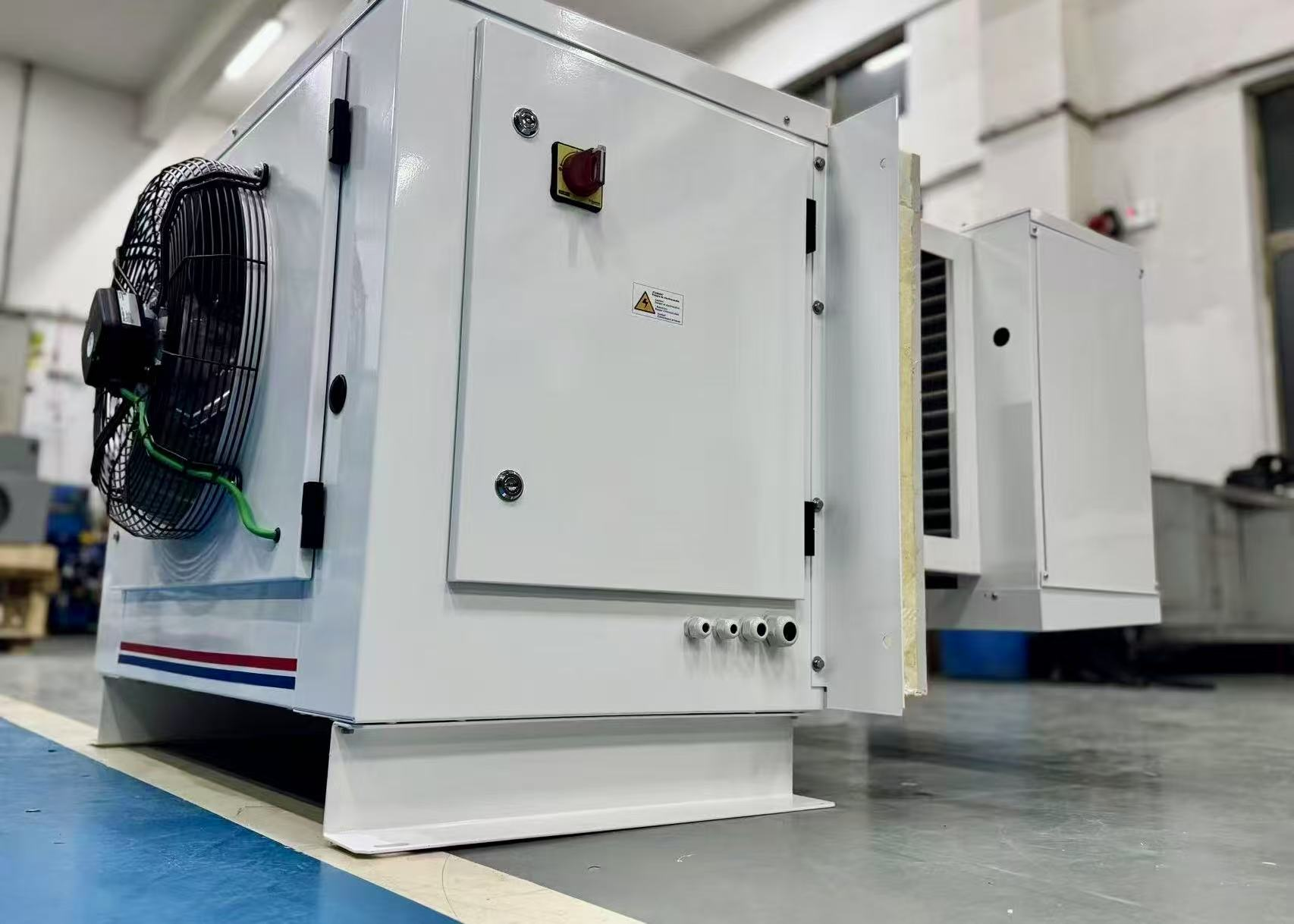

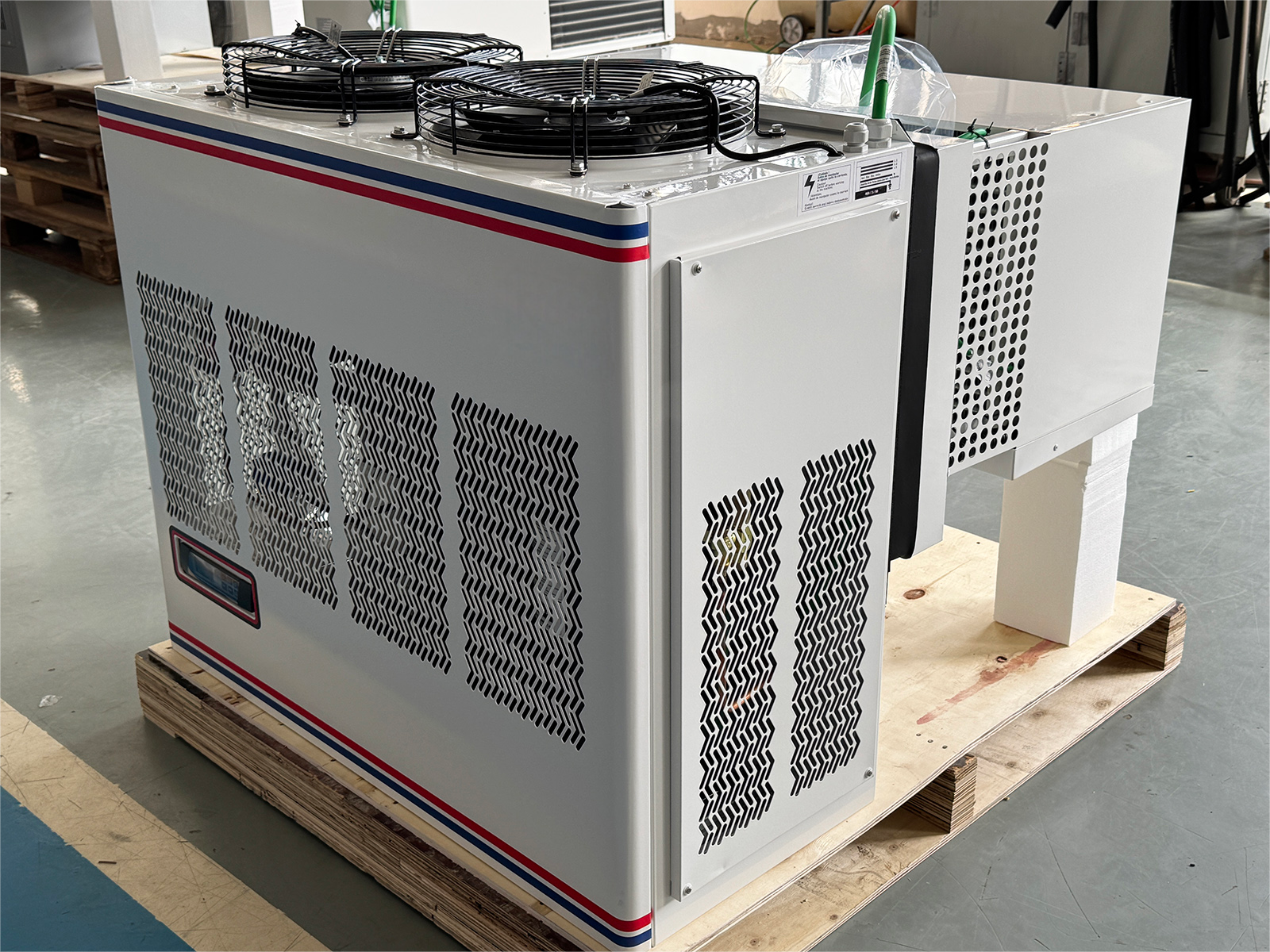

Product Photo

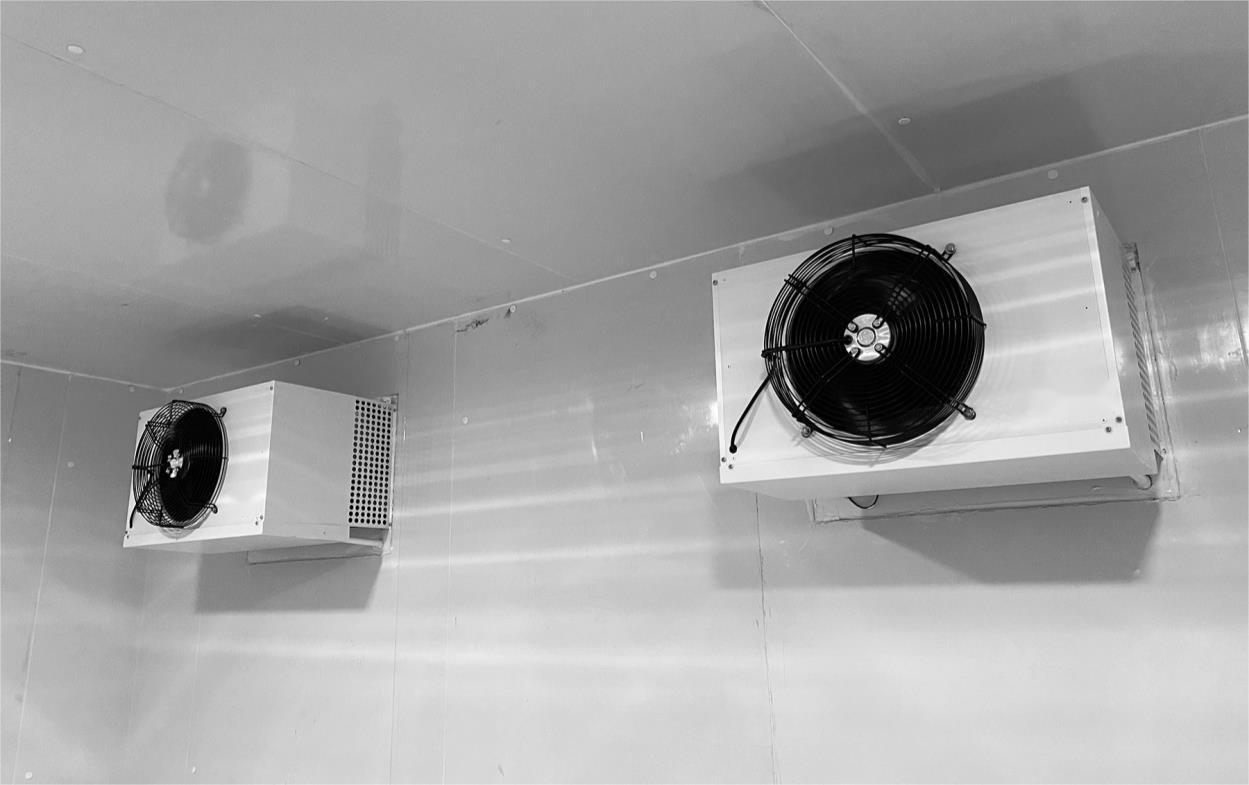

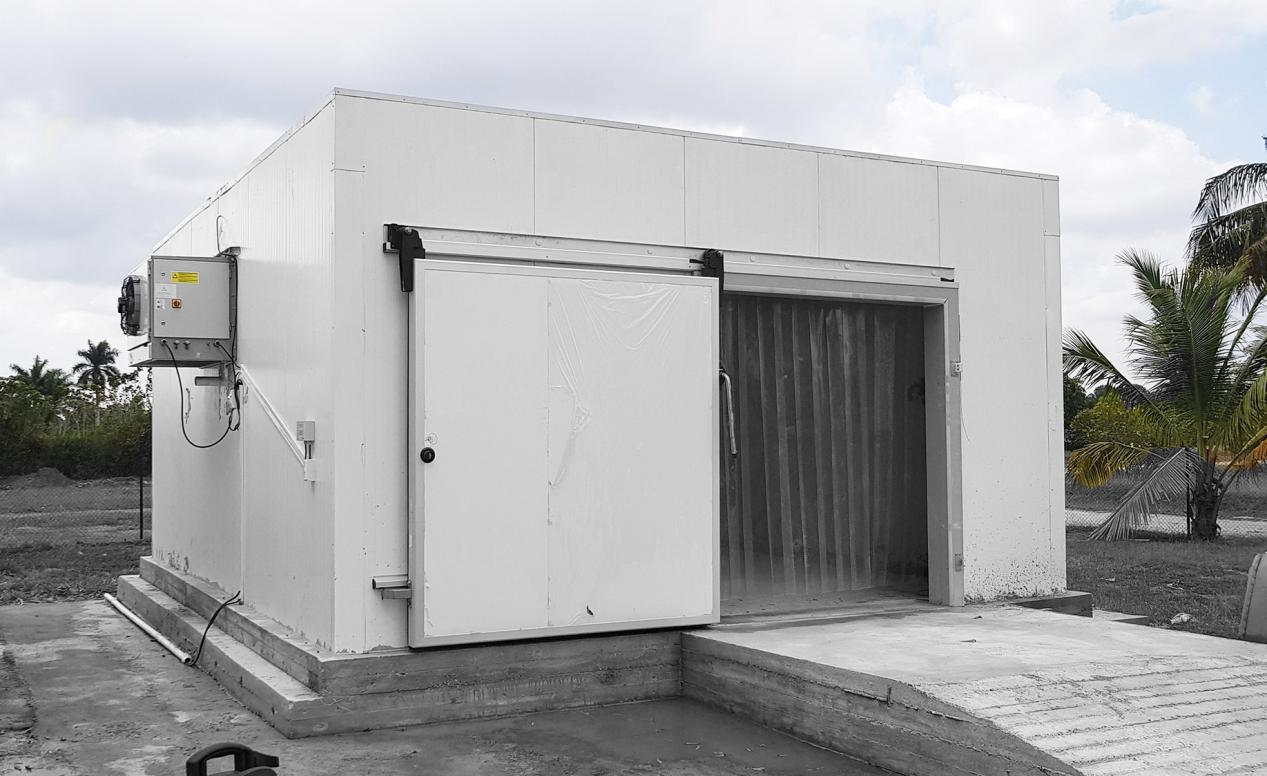

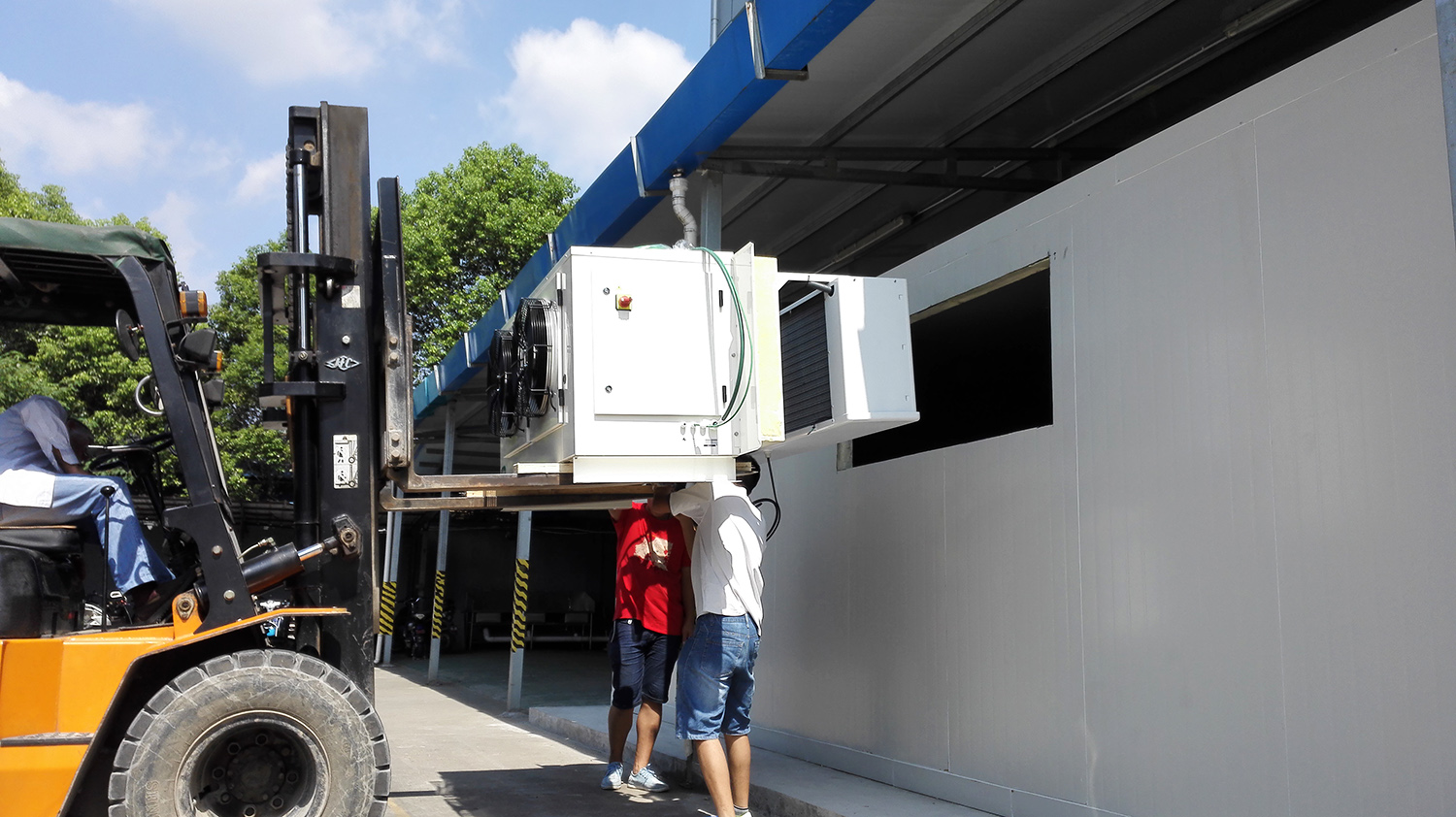

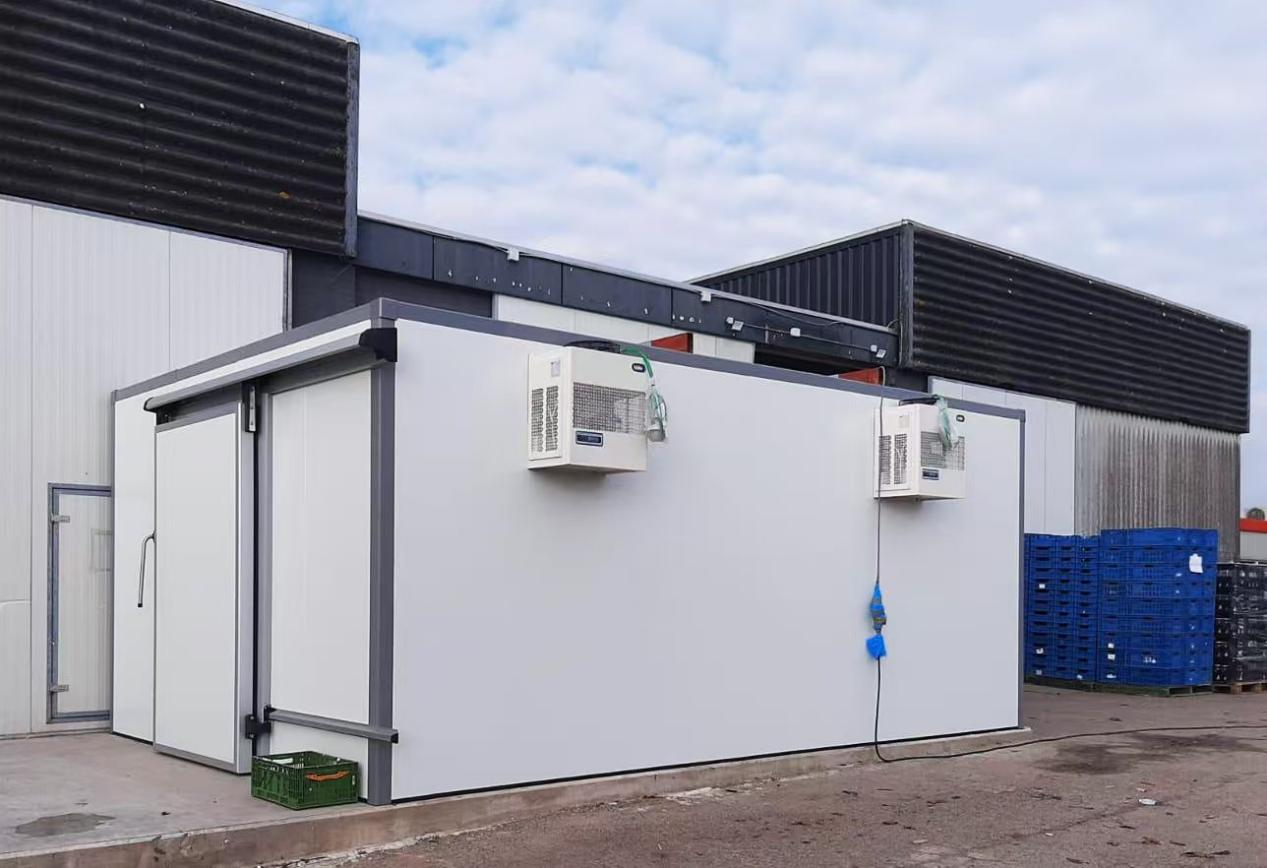

Application Cases
Packing & Delivery
